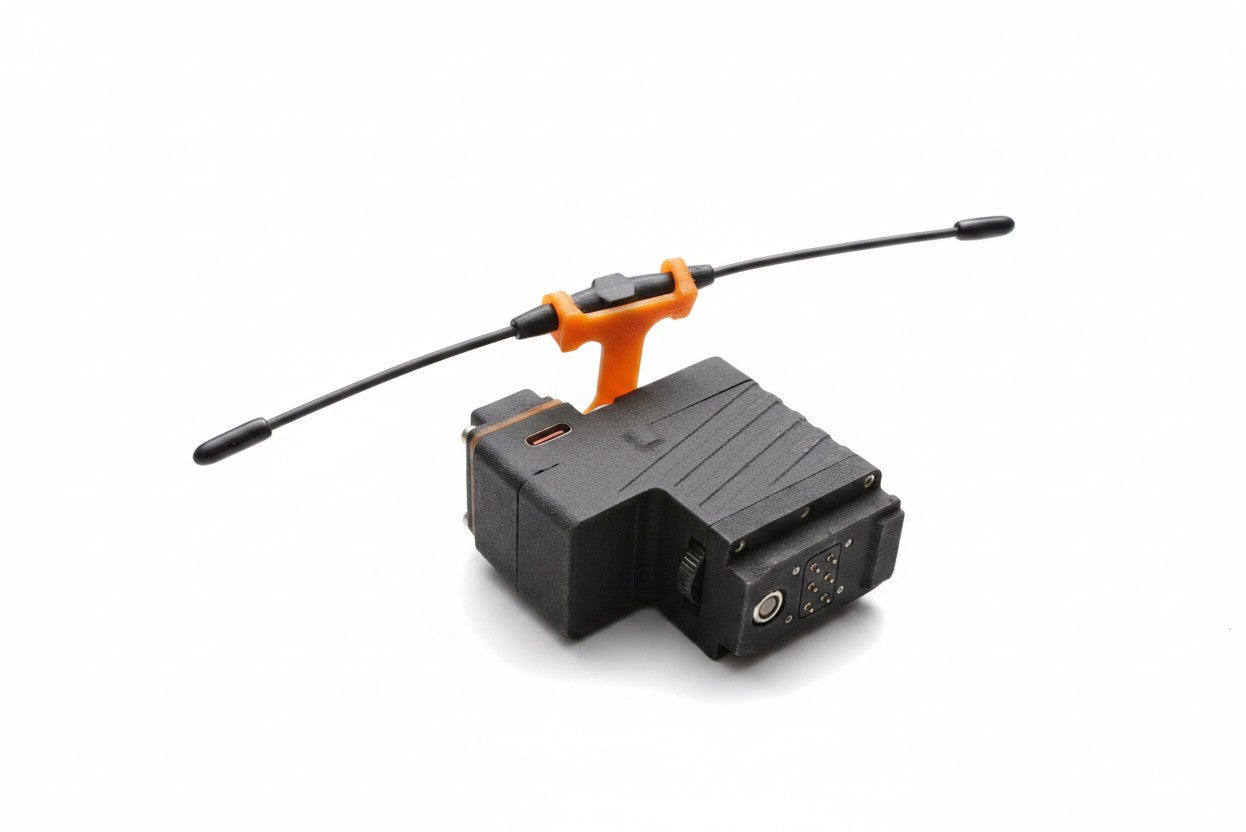

Ronin Bridge Pro + High-Bright Monitor Adapter — Bundle

Control every DJI cinema gimbal from one module — RS series, Ronin 4D, and Inspire 3.

For DPs, focus pullers, and FPV cinelifter operators working across the full DJI ecosystem. The Ronin Bridge Pro alone gives you wireless CRSF and SBus control of the RS2, RS3, RS3 Pro, RS3 Mini, and RS4 Pro over CAN bus, with sub-20 ms latency, three-axis movement, speed and smoothness control, recentre, sleep, FIZ motor control for up to three motors, and record start/stop via the RSS cable.

The High-Bright Monitor Adapter extends that same module in two important ways:

• Drive RS-series gimbals through the DJI Transmission combo — control your RS gimbal from anywhere the Transmission link reaches, using the same Bridge Pro module you already own.
• Add Ronin 4D and Inspire 3 gimbal control — two flagship cinema gimbals that don't accept third-party CRSF/SBus controllers natively. The adapter unlocks the Bridge Pro for both.

The result is one controller, one workflow, every DJI gimbal on the call sheet. No swapping between DJI's stock controllers, no learning two different control surfaces, no re-rigging when the production switches from a Ronin 4D to a Crossfire-controlled RS3 Pro on a cinelifter.

What's in the bundle

• 1 × Ronin Bridge Pro (only with Crossfire RX option)
• 1 × High-Bright Monitor Adapter

• Documentation at docs.cinetronix.co.uk

Compatibility

• Direct (Bridge Pro): DJI RS2, RS3, RS3 Pro, RS3 Mini, RS4 Pro — over CAN bus
• Via Transmission combo (with adapter): DJI Ronin 4D, DJI Inspire 3, DJI RS-series gimbals
• Receivers: any CRSF or SBus receiver (TBS Crossfire, ExpressLRS, FrSky)
